LED Showcase Strip Light

An LED showcase strip light is a linear LED light source developed for commercial display lighting. Through optimized LED arrangement and optical design, it provides stable and uniform illumination. With flexible installation, customizable dimensions, and soft lighting performance, it is suitable for showcases, shelves, display cabinets, and other commercial display applications.

Send Inquiry

Product Information

Introduction

An LED showcase strip light combines high-quality LEDs with a flexible circuit design. Through optimized LED placement, it provides continuous and uniform linear illumination.

Compared with standard LED strips, showcase strip lights place greater emphasis on illumination uniformity, color rendering, and display performance. Brightness, color temperature, and installation methods can be matched to different displayed products to enhance product presentation.

According to project requirements, length, brightness, color temperature, mounting structure, and connection methods can be customized for different showcases and commercial display lighting applications.

Product Features

Features

Uniform Linear Illumination

Optimized LED placement provides continuous and uniform linear illumination while reducing dark areas and visible hot spots.

Flexible Installation

The compact structure supports flexible installation and can be adapted to different showcases, shelves, and display spaces.

High-Quality Display Lighting

Supports different color temperatures and color-rendering requirements to enhance product details and overall visual presentation.

Ultra-Slim Design

The slim, lightweight structure requires minimal installation space, making it suitable for integration inside compact display cabinets.

Flexible Customization

Supports customization of length, brightness, color temperature, voltage, connection methods, and mounting structures.

Versatile Applications

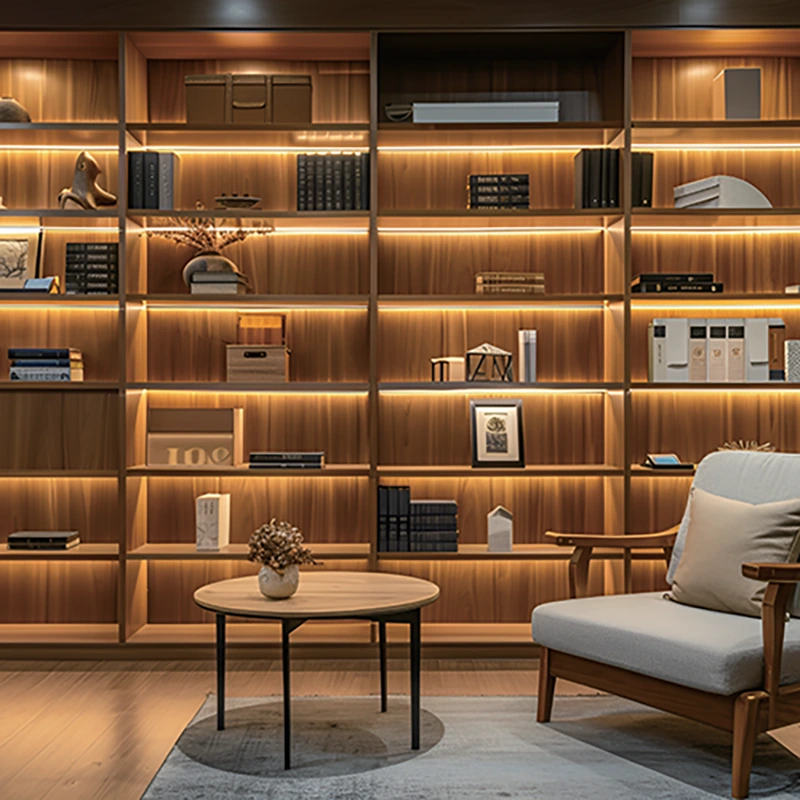

Suitable for showcases, shelves, display cabinets, jewelry displays, shop windows, commercial display spaces, and other custom lighting projects.

Specifications

Technical Specifications.

Reference specifications for project evaluation, product selection and engineering review.

Specification	Details
Product Type	LED Showcase Strip Light
Light Source	LED Chips
Illumination	Linear Illumination
Substrate	Flexible PCB / Custom Structure
Color Temperature	Customizable from 2700K to 6500K and other color temperatures
Color Rendering Index (CRI)	Matched according to project requirements
Brightness	Adjusted according to display requirements
Length	Customizable
Voltage	Matched according to project requirements
Control Method	On/Off / PWM / Controller Options
Installation	Adhesive Mounting / Slot Mounting / Aluminum Profile Mounting
Protection Rating	Customized according to the application environment
Connection Method	Customizable

When selecting an LED showcase strip light, factors such as the type of displayed product, installation position, lighting distance, brightness requirements, and color-rendering requirements should be considered.

For applications requiring enhanced product detail, improved visual presentation, and optimized display lighting, LED showcase strip lights provide a suitable lighting solution.

We can provide custom LED layout design, brightness matching, mounting-structure adaptation, and volume production according to project requirements for different commercial display applications.

Model No.	LED type	LED QTY/M	Voltage	Color temperature	IP Rate	LUMINOUS FLUX	Power	CRI
CS-FPC-27-120-12/24	2835	120LEDs	12/24V DC	2700K	IP20	1500lm/m450lm/ft	5W/ft	80/90
CS-FPC-41-120-12/24	2835	120LEDs	12/24V DC	4100K	IP20	1500lm/m450lm/ft	5W/ft	80/90
CS-FPC-53-120-12/24	2835	120LEDs	12/24V DC	5300K	IP20	1500lm/m450lm/ft	5W/ft	80/90
CS-FPC-65-120-12/24	2835	120LEDs	12/24V DC	6500K	IP20	1500lm/m450lm/ft	5W/ft	80/90
